dB

VHF23

3dB Light-weight Stainless Steel 0,95m

•Light weight stainless steel antenna especially made for sail boats
•1/2 λ antenna design
•Full omni-directional radiation pattern
•No groundplane needed
•Sold in kits with different brackets - See "Part No."


Electrical Specifications:

Frequency: 156 - 162.5 MHz (International Maritime VHF-band)
Bandwidth :6.5 MHz
Impedance: 50 ohm
VSWR < 1.5 Polarisation: Vertical Gain: 3dB (Marine), 0 dBd, 2.1 dBi Max. Input Power: 150 W

11023-000_DRW

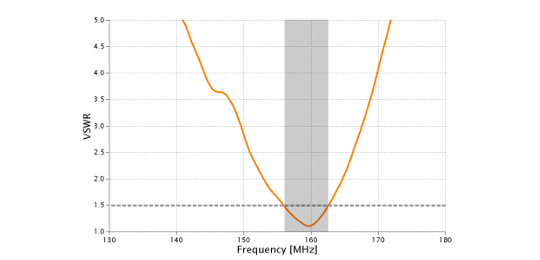

VHF23_VSWR


dB

VHF73

3dB VHF Fibreglass Antenna 1.26m

•High quality VHF antenna for professional use
•Similar design available for the AIS and AM/FM bands
•Full 1/2 λ dipole antenna design
•Full omni-directional radiation pattern
•DC-grounded (DC-short)
•No groundplane needed


Electrical Specifications:

Frequency: 146 - 162.5 MHz (International Maritime VHF-band a.o.)
Bandwidth:16.5 MHz
Impedance:50 ohm
VSWR < 1.5
Polarisation Vertical
Gain: 3 dB (Marine), 0 dBd, 2.1 dBi
Max. Input Power:150 W

11073-000_DRW
